*外客户咨询铜精矿泥浆用上海橡胶软接头产品

发布时间:2016-03-25 09:11

昨日,新疆乌鲁木齐客户替他们*外客户向我们上海淞江减震器集团咨询铜精矿泥浆用的上海橡胶软接头的技术资料以及价格,下面是新疆客户提*的*外客户的技术要求,大家可以和我们技术小编*起来学习*下:

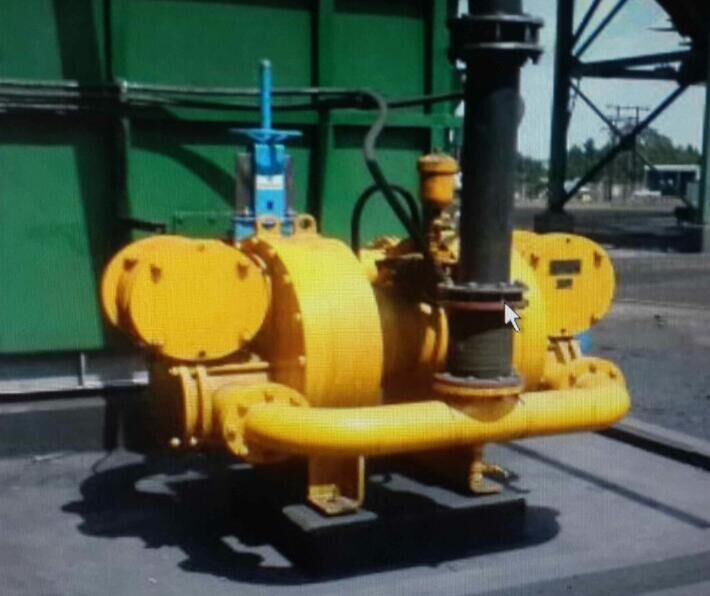

A) Rubber compensator with integrated flanges from 2 sides (per picture attached. We indicated on picture that it is between membrane slurry pump and pipe).
)上海橡胶软接头集成法兰从2方面(每幅图。我们显示图片,它是膜之间的泥浆泵和管道)。

Internal diameter=150 mm
内直径= 150毫米
External diameter=159 mm
外部直径= 159毫米
Length=40-50 cm
长度= 40 - 50厘米
Process pressure that hose needs to be resistant to=16 bar
过程压力软管需要耐= 16条
Slurry type: Copper concentrate, it is abrasive (not corrosive)
泥浆类型:铜精矿,磨料(非腐蚀性)
B) Steel flanges (to connect rubber compensator to the steel pipe)
B)钢法兰(上海橡胶软接头连接到钢管)
Internal diameter D=150mm
内直径D = 150毫米
1. The length 40-50 cm were chosen to have enough space to install and fix bolts. What is the closest length that you can find?
1。40 - 50厘米长度选择有足够的空间来安装和固定螺栓。*接近的长度是多少,你能找到吗?
2. Metal compensator is rejected.
2。金属补偿器将被拒*。
3. Single ball is ok
3所示。单球是好的
4. Completely abrasive inside (outside doesn’t matter)
4所示。完全磨料内(外并不重要)
Slurry type: Copper gold concentrate with density 55-60%, it is abrasive (not corrosive). Working temperature from +5 up to +40 by celcium
泥浆类型:铜金精矿密度55 - 60%,是磨料(不腐蚀)。工作温度由celcium从+ 5到40 +
ph 7 - 10; grain size classification: 90% - 0.074 mm,
ph值7 - 10;粒度分类:90% - 0.074毫米,
A) Rubber compensator with integrated flanges from 2 sides.
2)上海橡胶软接头综合法兰。
Internal diameter=150 mm
内直径= 150毫米
External diameter=159 mm
外部直径= 159毫米
Length=40-50 cm
长度= 40 - 50厘米
Process pressure that hose needs to be resistant to=16 bar
过程压力软管需要耐= 16条
Slurry type: Copper gold concentrate with density 55-60%, it is abrasive (not corrosive). Working temperature from +5 up to +40 by celcium
泥浆类型:铜金精矿密度55 - 60%,是磨料(不腐蚀)。工作温度由celcium从+ 5到40 +
ph 7 - 10; grain size classification: 90% - 0.074 mm,
ph值7 - 10;粒度分类:90% - 0.074毫米,
Qty: 6 each
数量:6
B) Steel flanges (to connect rubber compensator to the steel pipe)
B)钢法兰(橡胶补偿器连接到钢管)
Internal diameter D=150mm
内直径D = 150毫米
Qty: 6 each
数量:6
Flange bore DIN
法兰采用欧盟DIN标准

以上就是*外客户咨询铜精矿泥浆上海橡胶软接头的技术资料,如需了解更多关于铜精矿泥浆上海橡胶软接头的技术资料您可以登录我们的官方网站:http://www.shsjjzq.com/  或者拨打我们技术服务热线:021-60547776  15221366665(24小时服务热线)
